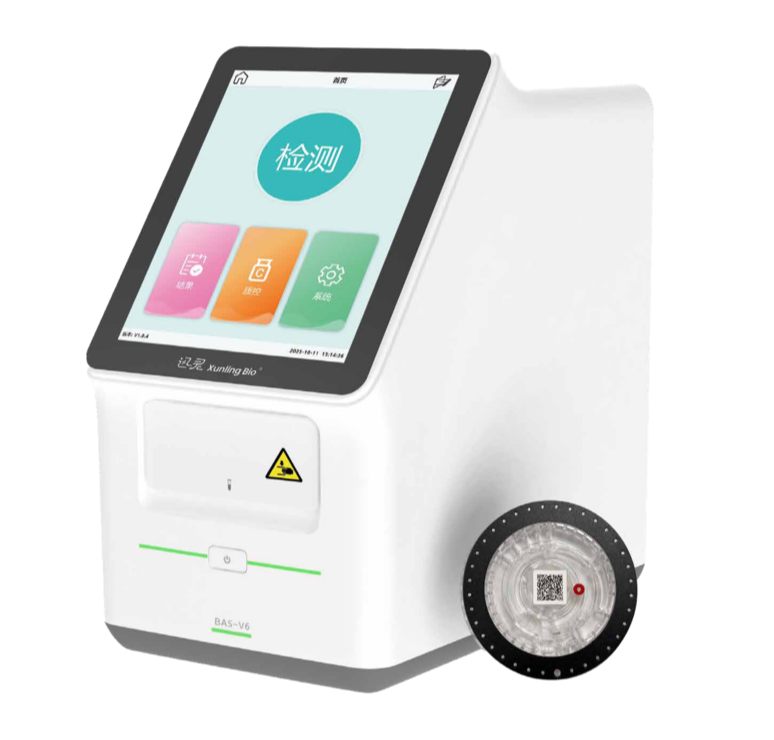

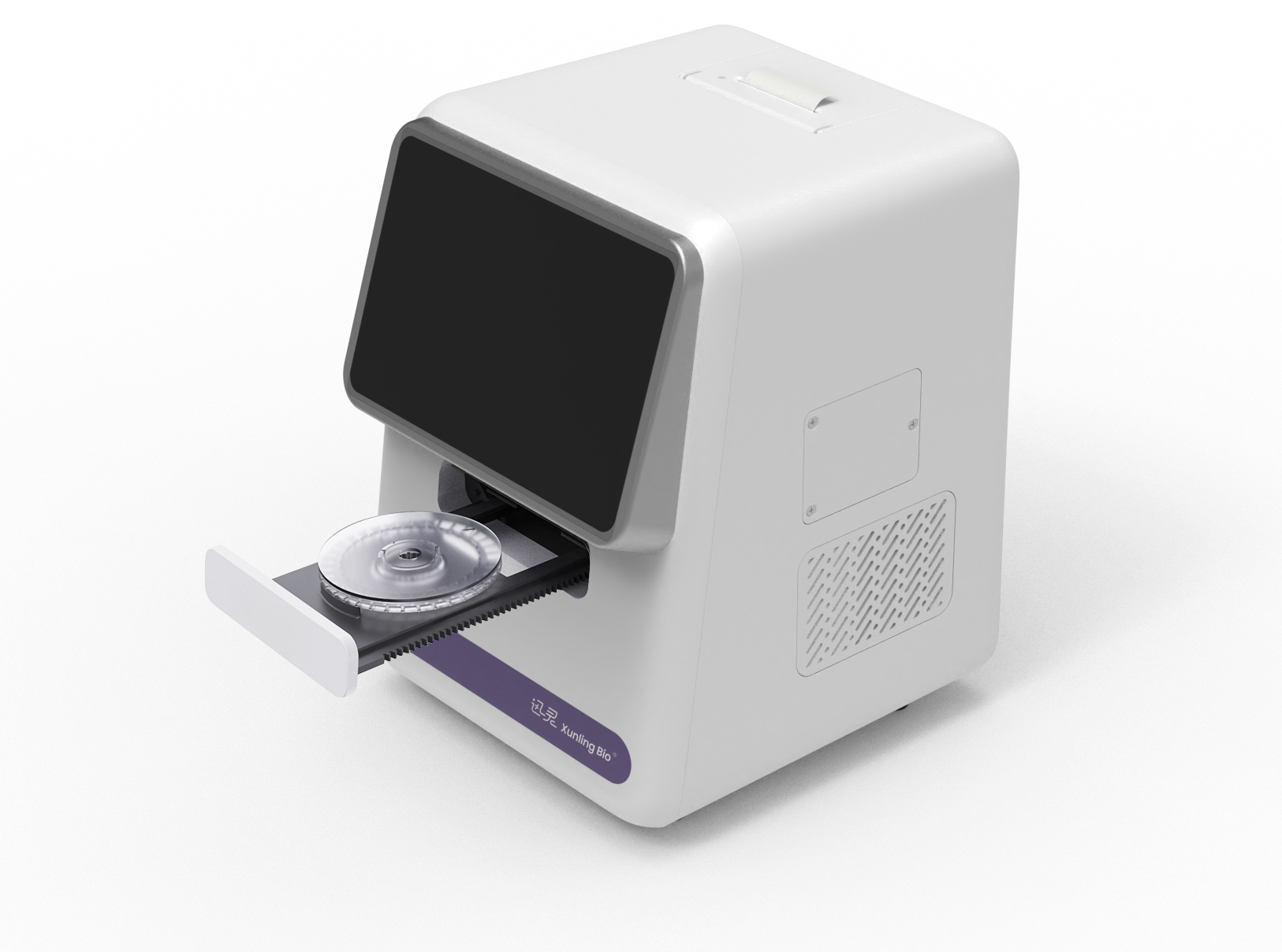

BAS-V6
Product Advantages
Rapid Detection: The reagent disc can be loaded for testing without pre-warming, delivering results in as fast as 8 minutes.
Accurate Results: Utilizing high-precision microfluidic technology and a high-performance optical detection system, it identifies sample interferences to ensure more accurate results.
Innovative Technology: The instrument incorporates a patented independent LED detection system, eliminating the need for beam splitting. Equipped with dual-gain adjustment (pre- and post-stage), it ensures optical stability, optimal signal-to-noise ratio, and extended light source lifespan.
Comprehensive Coverage: Offers a complete reagent test menu covering liver function, kidney function, electrolytes, immunity, cardiac markers, blood lipids, glucose, and more.
Instrument Parameters
Sample Type: Heparin lithium anticoagulated whole blood (capillary blood), serum, or plasma
Sample Volume: 90-120 μL
Detection Time: 8-12 minutes
Detection Principle: Absorbance colorimetry, turbidimetry
Reagent Identification: QR code automatic identificatio
Light Source: Long-life LED lamp
Optical System: Beam splitting not required, independent light source detection; wavelengths: 340nm, 405nm, 450nm, 505nm, 546nm, 600nm, 630nm, 700nm
Temperature Control Accuracy:37℃±0.3℃,fluctuation ±0.2℃
Sensitivity: 0.005 Abs
Data Storage Capacity: 500,000 records
Data Connectivity: 2 × USB ports, 1 × Ethernet port, supports Wi-Fi connection
Printer: Built-in thermal printer, supports multiple report template printing
Operating Environment: Temperature 10℃-15℃,humidity 30%-85%
Input Voltage: AC 220V, 50Hz
Operation Interface: 8-inch capacitive touchscreen with Linux OS, multi-language selection
Dimensions: 163mm (W) × 263mm (D) × 287mm (H)
Weight: 5.3 kg
