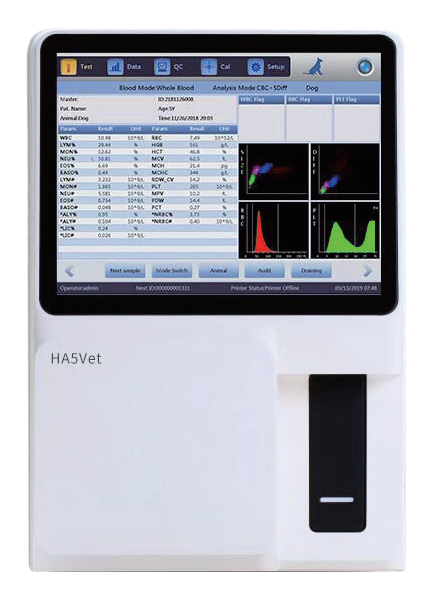

HA5Vet
Product Advantages
Multi-Angle Laser Flow Cytometry:
Compared to the classical electrical impedance detection technology,multi-angle laser flow cytometry provides a more comprehensive characterization of cellular features, enables more accurate white blood cell classification, and can be upgraded via software to offer veterinarians additional classification parameters in the future.
Reticulocyte Count:
Anemia is a common condition in animals, The HA5Vet analyzer can provide three keyparameters: absolute reticulocvte count (RET#), reticulocvte percentage (RET%), and immature reticulocvte fraction(lRF), thereby enabling the assessment of hematopoietic function and supporting the diagnosis of anemia types.
Dedicated Analysis Mode:
The HA5Vet analyzer not only supports whole blood, pre-dilution, and reticulocyte detection modes, but also features a dedicated feline-specitic mode desiened for the uniaue characteristics of cat blood samples, delivering truly professional performance in animal blood analysis.
Additional Parameters:
The HA5Vet analyzer provides 25 basic parameters, 6 research parameters, 3 graphicaldistributions, and 3 reticulocyte parameters, delivering comprehensive data references for veterinary diagnosis and research applications.
Complete Traceability System:
internationally Certified Traceability System that ensures the accuracy and reliability of test results.
Instrument Parameters
Scope of Application: The system features predefined reference ranges for 13 animal physiologies, which arecustomizable by animal species. lt supports automatic species recognition and optimal reference value matching.
Working Principle: lt utilizes multi-angle laser scatter flow cytometry for precise 5-part white blood cell (WBC)differentiation, Hemoglobin is quantified via a non-cyanide method, ensuring operational safety.
Test ltems: 37 parameters (includes 3 scatter plots)
Testing Speed: 60 samples per hour
Operating Environment: Temperature: 10°C~35°C; Humidity:30%~85%;
Atmospheric Pressure: 60kPa-106kPa
Data Ports: 4 USB ports, 1 LAN port
Data Storage: >200,000 test results (including graphs)
Sample Volume: Whole blood <20uL; Pre-diluted sample <20uL
Electrical Specifications: Operating Voltage:100V-240V; Power Consumption: 250VA
Dimensions&Weight: 490mm(L)x 332mm (W)x 459mm (H);
Weight: approx.35Kg
